Miniature M4/M8 rod end force transducer

Model:                        FLN

Capacity:                    0-500kg

Type:                          Inline load cell

Load direction:           Tension/compression

Rated output:              1.0 mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~10V

Connection:             M4/M8 threaded rod

Features:

The FLN threaded in-line miniature force sensor is a compact, stainless steel load cell designed using strain gauge technology to provide millivolt-per-volt (mV/V) output for both tension and compression force measurements. Available in eight rated capacities—0–5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 300kg, and 500kg—this versatile sensor suits a wide range of measurement needs. With M4 or M8 threaded rods on both ends, the FLN can be easily integrated into mechanical shafts, making it an ideal choice for in-line force detection where space is limited. Its small size and robust construction enable accurate measurement in both pull and press applications across various compact setups. The sensor’s stainless steel housing ensures durability and stability even in challenging environments. In addition to its standard configurations, the FLN miniature rod-end force sensor can be modified or custom-designed to meet specific user requirements, offering flexibility for unique industrial or research applications that demand precision in tight spaces.

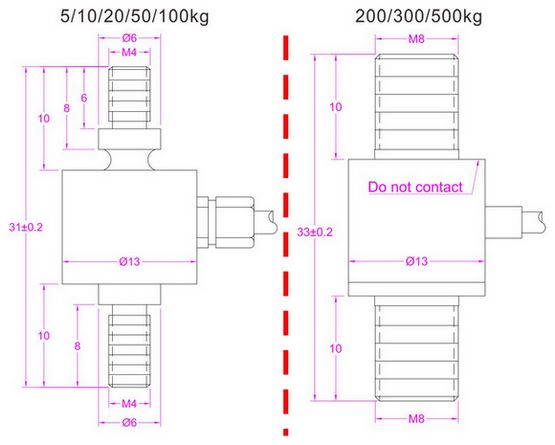

Dimensions:
