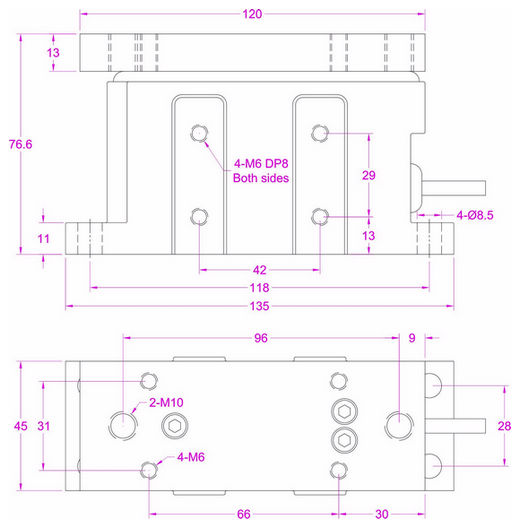

Pillow block load cell Tension measurement sensor

Model:                        TMB

Type:                          Pillow block load cell

Usage:                       Tension measurement

Load direction:           Compression

Rated output:              2.0mV/V

Non-repeatability:      0.3% of R.O.

Excitation:                  3~15V DC

Capacity:                    100/200/300/500N


Pillow block load cell TMB comprises a cast housing for adaptation to the clients machine and a mounting plate to accommodate the pedestal bearing. Tension sensor TMB offers 0-100N / 0-200N / 0-300N / 0-500N four rated measuring ranges for web tension measurement and control systems. Due to its good access to the pedestal bearings,the guide rollers can be easily replaced, block load cell TMB is normally installed under the bearing housing to sense the vertical force and is applicable for web tension control in most production plants where involves tension measurement and control.
