Product > Beam load cell

Micro weight sensor 0-1000g Miniature load cell

Model:                        FMHD

Capacity:                    300/500/1000g

Structure:                    Beam type

Type:                          Micro load sensor

Rated output:              1.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~10V

Usage:                       Measure weight

Features:

The FMHD micro weight sensor is a compact, lightweight full-bridge load cell available in four rated capacities: 300g, 500g, 750g, and 1000g. It delivers high accuracy with a maximum non-linearity of just 0.05% of full scale, ensuring precise and reliable measurements. Designed with 1000-ohm high-resistance strain gauges, the FMHD minimizes power consumption and heat generation, making it highly efficient for integration into electronic systems. This miniature load cell offers an ideal balance of small size, precision, and affordability, making it well-suited for high-volume production applications. Typical uses include force simulators, home appliances, handheld force measurement devices, gaming controllers, and similar compact systems where space is limited and performance is critical. Additionally, the small size load sensor FMHD can be modified or fully customized to meet specific application requirements, offering greater flexibility for OEMs and design engineers seeking tailored sensor solutions.

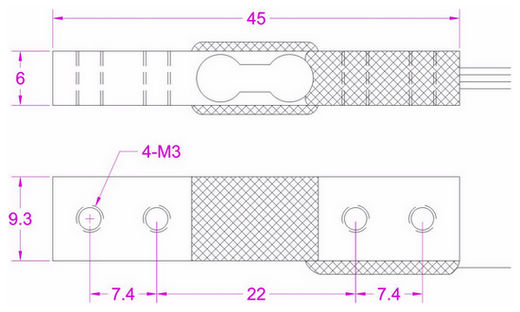

Dimensions:
