High capacity flange mount load cell 0-5000kN

Model:                   FCRF

Capacity:               300~5000kN

Material:                Alloy steel

Type:                     Flange load cell

Rated output:         2.0mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~15V

Load direction:        Tension compression





Features:

The FCRF high-capacity load cell is a robust, column-type force transducer designed with a flange-to-flange mounting structure for easy and secure installation. Constructed from durable alloy steel and utilizing strain gauge technology, the FCRF is built to withstand heavy loads and harsh industrial conditions. It is available in a wide range of rated capacities, including 300kN, 500kN, 600kN, 1000kN, 1500kN, 2000kN, 2500kN, 3000kN, 4000kN, and 5000kN, and is suitable for both tension and compression force measurements. A notable feature of the FCRF is its 2000-ohm high resistance, which significantly reduces power consumption and enhances long-term measurement stability—ideal for continuous monitoring in demanding applications. Its flange design makes it especially well-suited for high-load structural applications, and it is commonly used in bridge load testing, hydraulic jack force monitoring, pile testing in construction, and force calibration of construction machinery. Additionally, the FCRF performs reliably in environments such as industrial press operations, injection molding machines, and rolling mills, where precise force monitoring is critical. This combination of strength, accuracy, and ease of integration makes the FCRF a preferred choice for engineers and system integrators working with heavy-duty force measurement requirements.

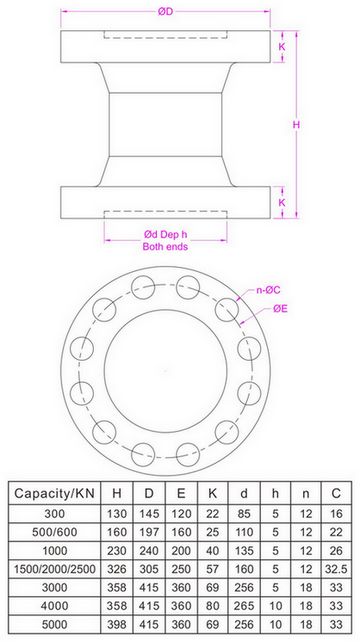

Dimensions:
