Low profile pancake load cell 500N 1kN 2kN 3kN

Model:                        FCMP

Capacity:                    500/1k/2k/3kN

Material:                     Stainless steel

Type:                         Pancake load cell

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                        Low profile sensor

Features:

The FCMP low-profile pancake load cell is a compact and durable force transducer made of stainless steel, designed for both tension and compression force measurement. It is available in four rated capacities: 500N, 1kN, 2kN, and 3kN. At the center of the sensor is an M8x1.25 threaded hole, allowing for easy attachment of load buttons, eye bolts, or custom adapters to accommodate various force loading setups. The FCMP shear web load cell is well-suited for both static and dynamic force measurements, offering reliable performance in a wide range of industrial and testing environments. Its low-profile design makes it ideal for applications where space is limited, without compromising on measurement accuracy or structural integrity. This versatile load cell is commonly used in material testing, mechanical integration, and force verification systems.

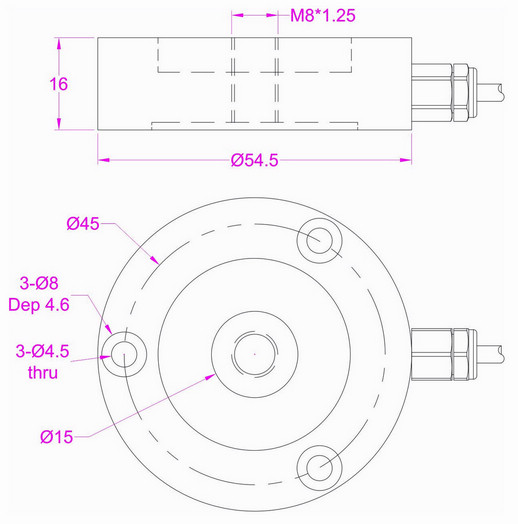

Dimensions:
