Bi-axial load cell Fx/Fy 2 axis force sensor

Model:                        F2E

Capacity:                   0-100kg

Material:                     Al/S.S

Load direction:           Fx/Fy

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

2-axis load cell F2E offers 1kg / 2kg / 5kg / 10kg / 20kg / 30kg / 50kg / 100kg eight measuring ranges for two-dimensional force measurement in Fx/Fy directions.Each axis consists of a full wheatstone bridge to deliver mV/V output proportional to the force applied, both axes are able to measurement tension and compression load.Bi-axial force sensor F2E can be modified or customized to meet requirements of different applications.

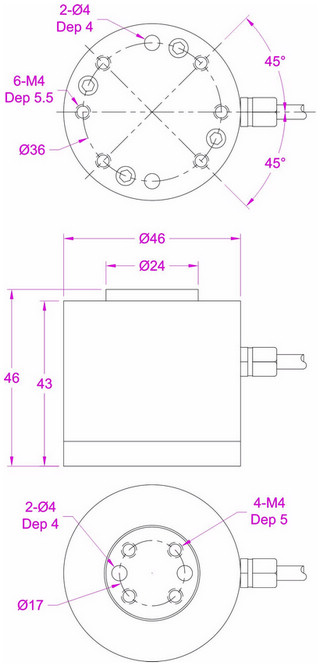

Dimensions:
Searching keywords:
Biaxial force sensor,2-axis load cell,multi-axis force transducer
