Miniature inline shaft rotary torque sensor 0-5Nm

Model:                        FYAH

Type:                         Micro torque transducer

Structure:                    Shaft-to-shaft

Torsion direction:         Clockwise&CCW

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Style:                          Dynamic torque sensor

Torque range:             1/2/3/5Nm

Features:

The FYAH miniature shaft-to-shaft in-line rotary torque transducer is designed for dynamic torque measurement in both clockwise and counterclockwise directions. Available in four rated capacities—1Nm, 2Nm, 3Nm, and 5Nm—it is ideal for precise torque monitoring in compact spaces where installation room is limited. Its small, efficient design makes it especially suitable for applications such as motor testing, robotics, and precision assembly tools. The FYAH torque sensor offers stable and accurate measurement during continuous rotation, ensuring reliable performance in dynamic conditions. In addition to the standard models, customized versions can be provided to accommodate other torque ranges while maintaining the same compact structure, allowing seamless integration into specialized setups. The FYAH dynamic torque transducer is a practical and versatile choice for engineers and system integrators requiring high-precision torque sensing in space-constrained environments.

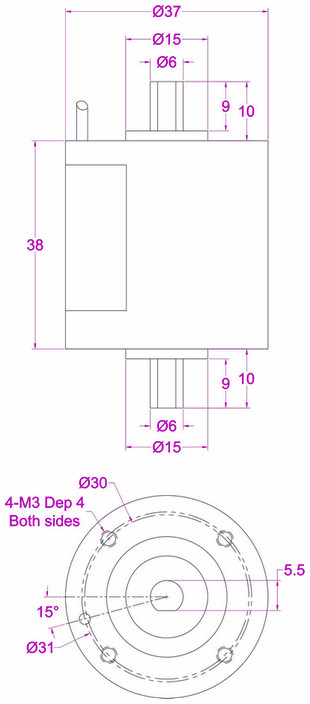

Dimensions:
