Triaxial load cell 0-5kN Multi-axis sensor

Model:                        F3F

Capacity:                    200N~5kN

Material:                     Al/Alloy steel

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of F.S.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

3-component load cell F3F offers 200N / 300N / 500N / 1kN / 2kN / 3kN / 5kN seven rated capacities for all three axes to choose from, each axis is capable of measuring tension and compression load. Independent wheatstone full bridge is used for Fx/Fy/Fz channel to deliver mV/V output which can be converted to 0-5V/0-10V/4-20mA signal through external load cell amplifier. Compact design with 30mm height,simple signal processing without mathematical manipulation,custom made service available, you may find triaxial force sensor F3F suitable for applications such as force exertion control in robotics, orthopedics and biomechanical research, industrial test benches, grinding force monitoring, actuator force measurement&control,etc..

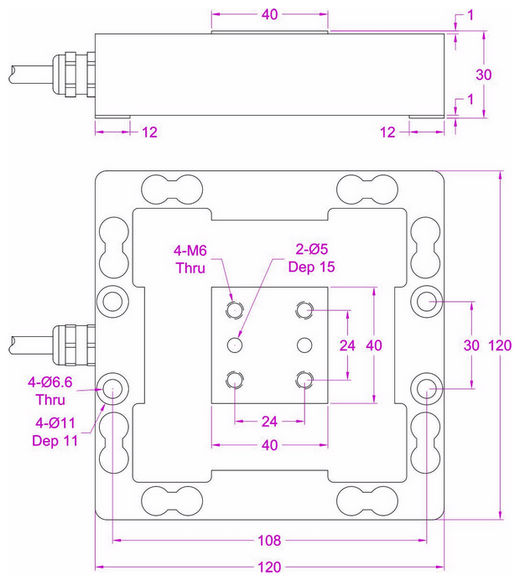

Dimensions:
Searching keywords:
multi-component load cell,Multi axis sensor,3D force sensor
