Ultra thin load cell|Flat plate force sensor

Model:                        FMXD

Type:                          Low profile load cell

Feature:                     Compact weight sensor

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~12V

Capacity:                   100N/300N/500N/1kN/2kN

Features:

The FMXD Flat Plate Force Sensor is an ultra-thin load cell designed to provide accurate and cost-effective force measurement in applications where installation space is limited. It features a metal foil strain gauge system bonded to an alloy steel sensing element manufactured using a precision stamping process, ensuring reliable performance and suitability for high-volume production. Available in five rated capacities of 100N, 300N, 500N, 1000N, and 2000N, this low profile load cell offers excellent measurement accuracy with a maximum non-linearity of 0.1% F.S. Its compact structure, with an overall thickness of just 5.1mm, makes it an ideal solution for space-constrained applications. A central through-hole allows mounting attachments to be installed, providing greater flexibility for mechanical integration and adapting the sensor to different measurement requirements. The FMXD Flat Plate Force Sensor is widely suitable for robotics, industrial process control, Sim Racing pedal force feedback systems, automotive testing, and other force measurement applications requiring a compact and low-profile design. As a professional force sensor supplier, Forsentek also offers customized measuring ranges and specifications with a similar mechanical structure to meet specific application requirements.

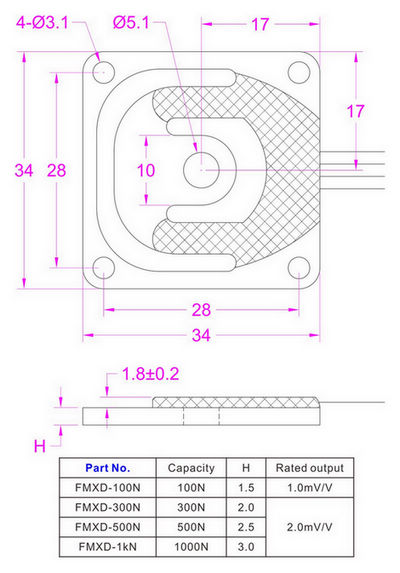

Dimensions:
Searching keywords:
Low profile load cell,thin force sensor,compression load cell
