Stainless steel IP67 S type load cell 3.0mV/V

Model:                        FSRG

Capacity:                    25kg~10 ton

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              3.0 mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Features:

S type load cell FSRG is made of stainless steel based on strain gauge technology with trimmed 3.0mV/V output intended for tension and compression force measurement,it is available in a wide range of capacities from 25kg to 10 ton (50lb to 20klb) with maximum 0.02% non-linearity of the full scale.Universal s-beam load cell FSRG is hermetically sealed to IP67 with both metric and imperial threads available.Model FSRG is applicable for rope and chain strength testing, bagging machines, concrete batching equipment, material testing machines, hanging scales, hoppers and tank weighing applications.You may find FSRG interchangeable with Siemens SIWAREX WL250 ST-S SA,VPG Revere 9363, Artech model SS 20210, ptglobal PT4000, Rice Lake RL20000SS and RL20000ST, VPG Sensortronics 60050 but with lower cost.

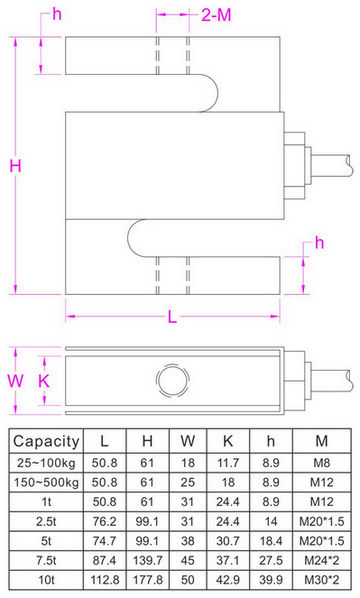

Dimensions:
