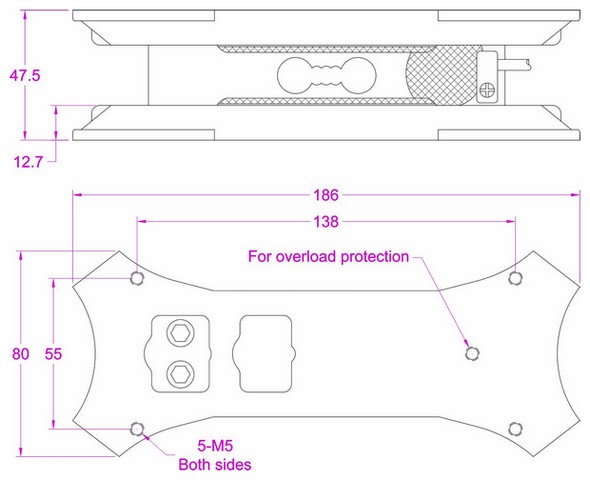

Weight measurement device for intelligent shelf
Model: FWHC
Capacity: 3/6/10/20/40kg
Material: Aluminum alloy
Load direction: Compression
Rated output: 2.0 mV/V
Non-repeatability: 0.015% of R.O.
Excitation: 3~15V
Other: Custom-design service
Features：
Weight measurement sensor FWHC offers 3kg / 6kg / 10kg / 20kg / 40kg measuring ranges to choose from,high accuracy with maximum 0.02% non-linearity.This weight sensing unit is temperature compensated to deliver stable readout in long term measurement with very low creep,you may find weighing load cell FWHC suitable for applications such as weight detecting in intelligent shelf,smart warehousing,vending machine,packing line,etc..Please contact us for higher range up to 500kg.
