Low profile load cell Thin beam load cell

Model:                        FMZX

Capacity:                    5kg/10kg

Material:                     Aluminum

Load direction:           Compression

Rated output:              1.65mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~12V

Other:                         Custom-design service



Features：

Low profile load cell FMZX is a strain gauge based weight transducer intended for weight measurement applications with limited mounting space,model FMZX offers 5kg and 10kg rated capacities with maximum 0.1% non-linearity of the rated output.FMZX uses 1000ohms high resistance stain gauges to decrease power consumption and heat emission compared to commonly used 350ohms gauges.Thin beam load cell FMZX features 4mm height for the elastic body which makes it applicable for highly integrated weighing instruments.In addition to the offered size and standard capacities,Forsentek is also capable of and willing to provide customized solutions to better fit client’s requirements.

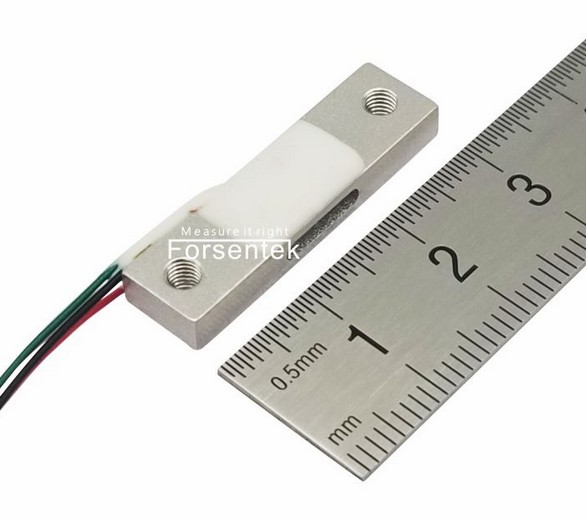

thin beam load cell

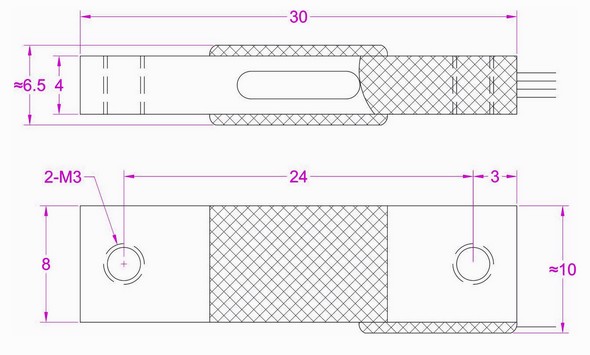

Dimensions：
