Stainless steel load cell Waterproof load cell

Model:                        FHSR

Capacity:                    110kg~4400kg

Material:                     Stainless steel

Load direction:           Compression

Rated output:              1.94 mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Features：

Single-ended shear beam load cell FHSR is made of stainless steel utilizing strain gauge technology to deliver maximum 0.02% non-linearity of the rated output. Load cell FHSR offers 110kg / 220kg / 550kg / 1100kg / 1760kg / 2200kg / 4400kg seven different measuring ranges to choose from.Laser welded to IP68 ingress protection class makes it suitable for harsh working conditions in both indoor and outdoor applications.Model FHSR is normally used in a combination of 3pcs or 4pcs for tank weighing, hopper weighing, platform scales, level monitoring,etc..

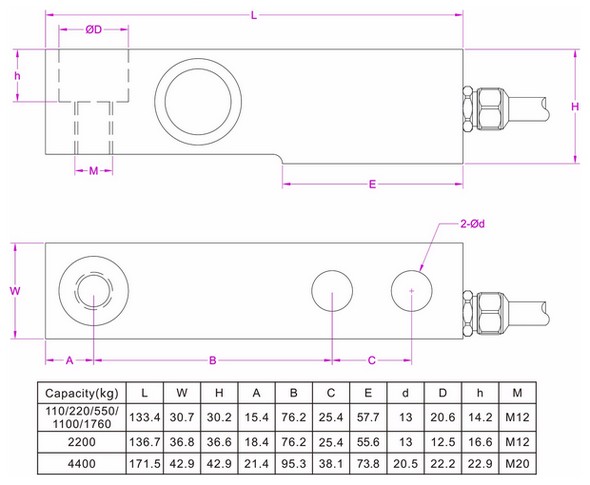

Dimensions：
Searching keywords：
Single-ended shear beam load cell,stainless steel load cell,waterproof load cell,load cell IP68
