Flange to flange load cell|Flange force sensor

Model:                        FFE

Capacity:                    2kN~60kN

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service



Features:

Flange-to-flange load cell FFE utilizes strain gauge technology to deliver maximum 0.3% non-linearity of the rated output.Flange force sensor FFE offers 2kN / 3kN / 5kN / 10kN / 20kN / 30kN / 40kN / 50kN / 60kN ten different measuring ranges to choose from intended for force measurement in both tension and compression direction.Rugged structure thanks to 17-4 stainless steel construction,double flanges design makes connection reliable,you may find model FFE applicable for applications such as actuator force control, hand press force verification, assembly force checking, spring testing, ultrasonic welding clamp force control,and so on. Forsentek is also capable of and willing to provide custom design service according to clients’ specific requirements.

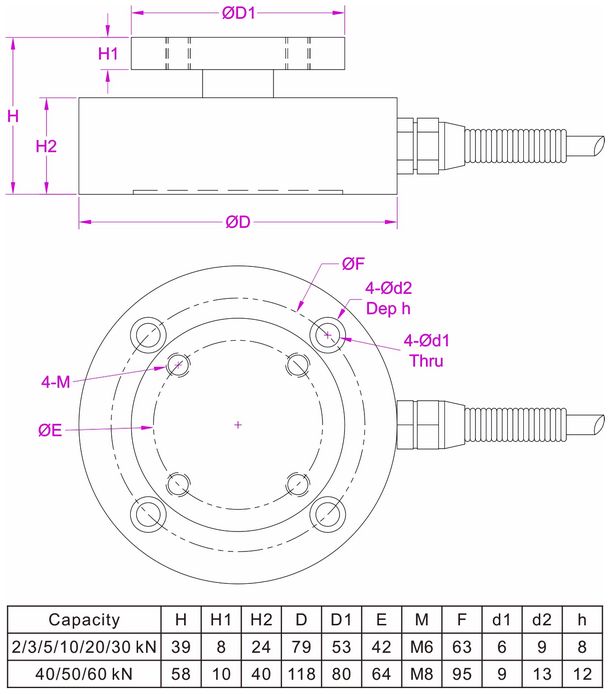

Dimensions:
