Product > Tension compression load cell

Inline load cell|In-line type force sensor

Model:                        FL3F

Capacity:                    5kg~500kg

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              1.0 mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~10V

Other:                         Custom-design service

Features:

Inline load cell FL3F is made of stainless steel utilizing strain gauge technology, compact size with M6/M8 metric threads on both ends which enables force sensor FL3F to be easily embedded into mechanical shaft and get the measurement done.In-line type force sensor FL3F offers 5kg / 10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg eight measuring ranges to choose from,it is applicable for both tension and compression force measurement,especially suitable for industrial applications with limited mounting space.Besides the standard dimensions and capacities,force transducer FL3F can also be modified or customized according to client’s specific requirements.

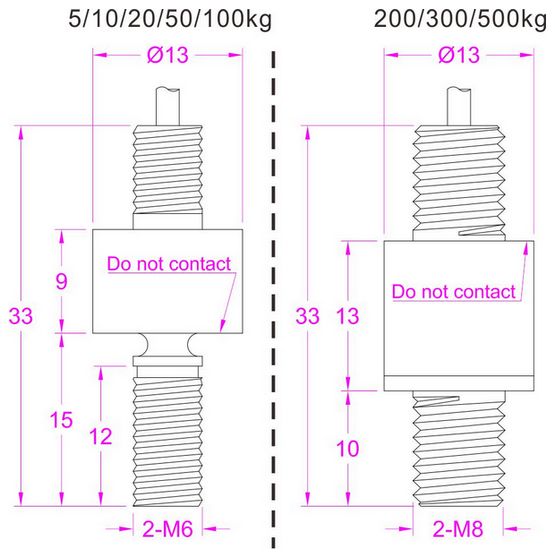

Dimensions:
