Multi-axis load cell 1kN 500N 300N 200N 100N 50N

Model:                        F3G

Capacity:                    0~1000N

Material:                     Stainless steel

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Tailor-made service

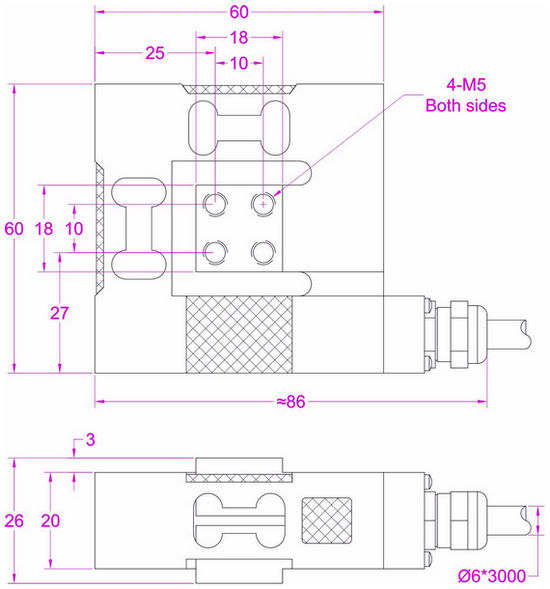

Multi-axis load cell F3G is made of stainless steel based on strain gauge technology,independent wheatstone full bridge for each axis provides mV/V output proportional to the applied force and requires no mathematical manipulation.Triaxial load cell F3G offers 1kN / 500N / 300N / 200N / 100N / 50N / 30N / 20N measuring ranges for all three axes,each axis can measure bidirectional force in tension and compression direction. L*W*H=60*60*26(mm*mm*mm) compact design makes 3-axis force sensor F3G applicable for multi-axis force measurement where mounting space is limited.Typical applications for this type of transducer are for example force exertion control in robotics,industrial test benches,actuator operating force measurement and so on.
