Product > Tension compression load cell

IP68 load cell Tension compression load cell

Model:                        FSRT

Capacity:                    500kg~7500kg

Material:                     Stainless steel

Load direction:           Tension/compression

Rated output:              2.0 mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

S-beam load cell FSRT is made of stainless steel intended for both tension and compression measurements,the internal threads located on both ends can be used to install swivel heads or load buttons for different purposes.FSRT offers 500kg/1000kg/2000kg/3000kg/5000kg/6000kg/7500kg measuring ranges with unified 2.0mV/V output.S-type load cell FSRT is temperature compensated to deliver stable performance throughout the working temperature range.

Bidirectional force sensor FSRT is IP68 hermetically sealed by laser welding which makes it applicable for weighing&measuring applications with harsh working conditions.Typical applications for this type of force transducer are for example suspended tank and vessel weighing,hopper scales,concrete batching equipment,auto-filling machines,conveyor belt scales,hanging scales,material testing machines,and so on.

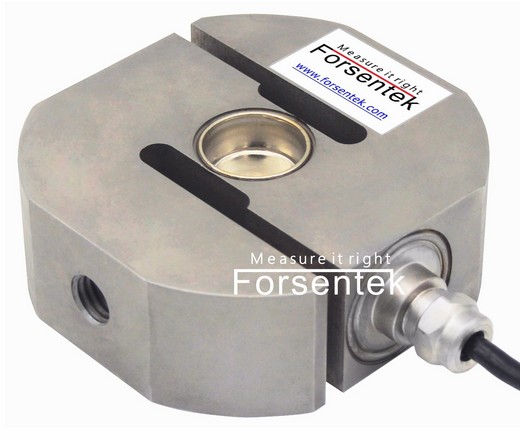

s-beam load cell

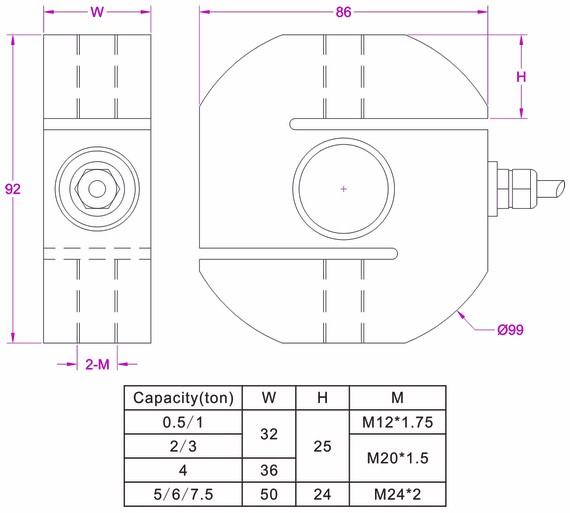

Dimensions:
Searching keywords:
IP68 load cell,bidirectional force sensor,tension compression load cell,s-beam force transducer
