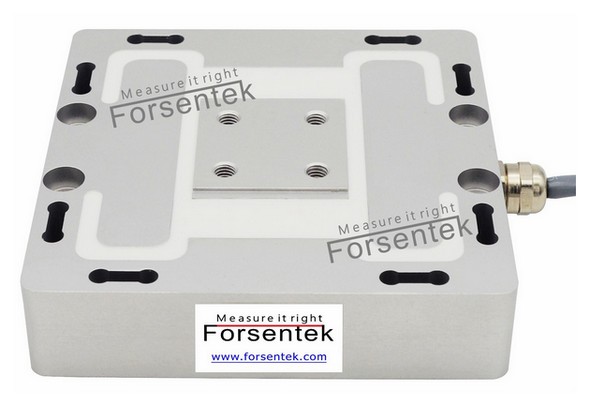

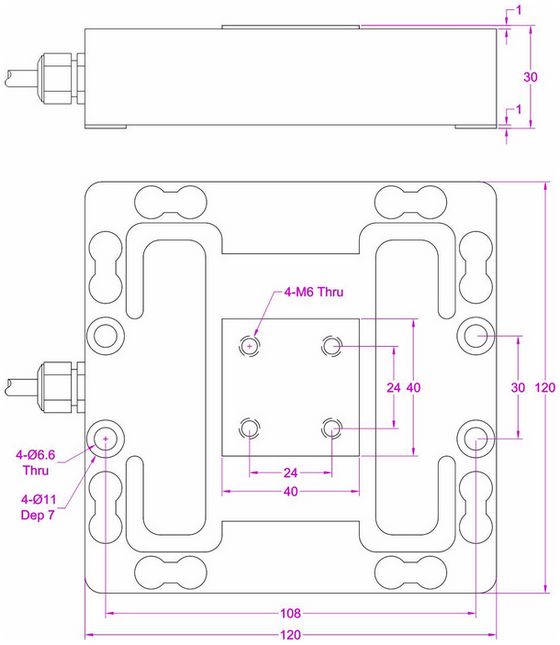

Multi axis load cell 0-200kN 3-axis force sensor

Model:                        F3F/F3H/F3K

Capacity:                    0~200kN

Material:                     Al/S.S.

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of F.S.

Excitation:                  3~15V

Other:                         Custom-design service



Multi-axis load cell F3F/F3H/F3K is strain gauge based with low profile design.Independent wheatstone full bridge for each axis provides mV/V output proportional to the applied force and requires no mathematical manipulation. 3-axis load cell F3F/F3H/F3K is designed to measure forces simultaneously in 3 mutually perpendicular axes Fx/Fy/Fz, tension and compression force measurement for each axis. These sensors offer 0-200N / 0-300N / 0-500N / 0-1kN / 0-2kN / 0-3kN / 0-5kN / 0-10kN / 0-20kN / 0-30kN / 0-50kN / 0-100kN / 0-200kN (0-45lb / 0-67 lb / 0-110lb / 0-220lb / 0-450lb / 0-674lb / 0-1.12klb / 0-2.25klb / 0-4.5klb / 0-6.75klb / 0-11.2klb / 0-22.5klb / 0-45klb) thirteen measuring ranges for all three axes to choose from, custom design is also available if the existing structure or capacities don’t fit client’s applications. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Searching keywords:
Multi axis load cell,3 axis load cell,multi-axis force sensor,3-axis force sensor,triaxial load cell
