Product > Tension compression load cell

S type load cell with M8/M12 tapped mounting hole

Model:                        FS6A/FS6B

Capacity:                    5kg~300kg

Type:                          S-beam load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.03% of R.O.

Excitation:                  3~15V

Internal thread:            M8/M12

Features:

Universal s-type load cell FS6A/FS6B is strain gauge based intended for tension and compression force measurement with 5kg / 10kg / 20kg / 30kg / 50kg / 100kg / 200kg / 300kg eight rated capacities to choose from. M8/M12 metric threaded holes located on both ends can be used to mount attachments such as eye bolts and hooks for adapt to different cases. S beam force transducer FS6A/FS6B offers an accurate and affordable measuring solution for applications like material testing machines, hanging scales, hopper weighing and so on.

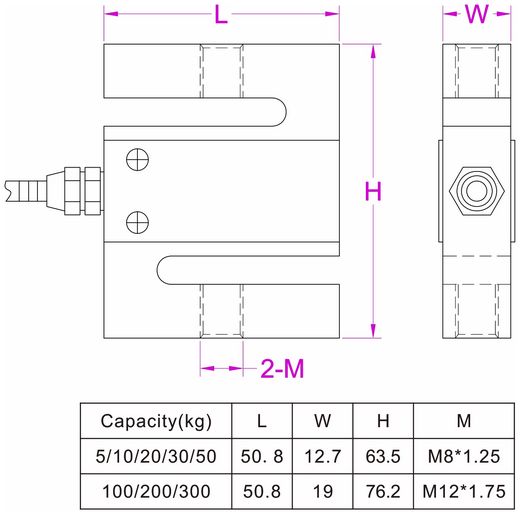

Dimensions:
