Load cell summing box 4-20mA 0-5V 0-10V

Model: FJB

Input: 2.0~3.0mV/V

Output: 0-5V/0-10V/4-20mA

Accuracy: 0.15% F.S.

No. of load cells: 2~4pcs

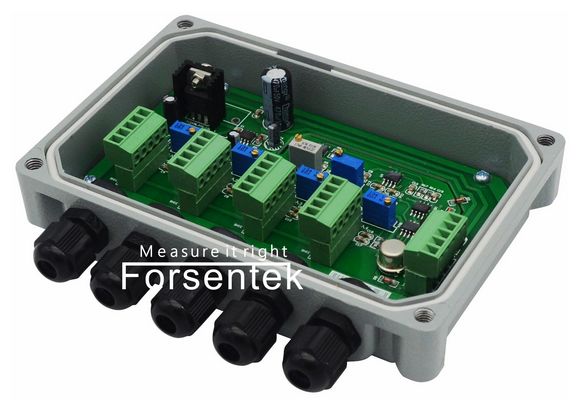

Load cell signal summing box FJB can connect 2-4pcs load cells and outputs 0-5V/0-10V/4-20mA which is proportional to the applied load,thus the weight/load can be measured by measuring the analog signal which can be fed to control unit like PLC for auto processing.The inside potentiometers can be used to compensate the sensitivity difference of the load cells to achieve better measuring accuracy.The aluminum housing of signal conditioner FJB provides IP65 protection which makes it suitable for most industrial weighing applications where multiple load cells are involved such as hopper scales,tank weighing,cement weight measurement,level monitoring,etc..

load cell signal conditioner

Searching keywords:
Load cell signal conditioner,load cell summing box,load cell junction box,summing box for hopper scales
