Rod end load cell Tension compression load cell

Model:                        FLD

Capacity:                    0~100kN

Material:                     Alloy steel

Load direction:           Tension/compression

Rated output:              2.0 mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Rod end load cell FLD is made of high stiffness alloy steel based on strain gauge technology which delivers mV/V output. In line load cell FLD is featured with threaded rods on both sides for easy mounting, which also makes it applicable for both tension and compression force measurement. Push and pull force sensor FLD offers wide measuring range from 1kN up to 100kN with maximum 0.1% non-linearity. You may find FLD suitable for applications such as material testing, thrust force measurement, hydraulic actuator testing, laboratory measurements,etc..

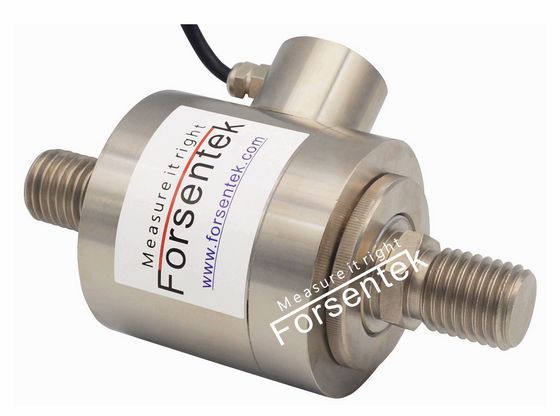

rod end load cell

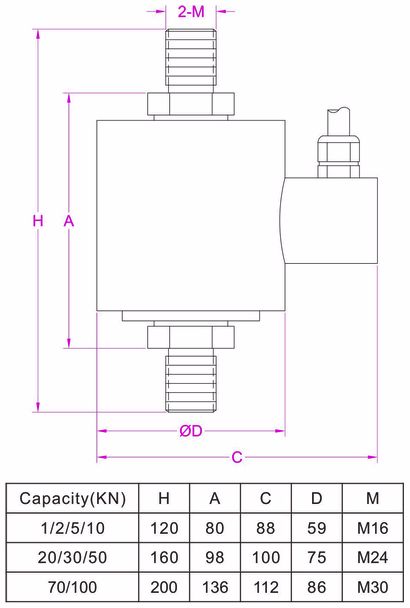

Dimensions:
