Product > Beam load cell

Load cell 0-5V output|Load cell 4-20mA

 Model:              FAHB

Capacity:              5kg-40kg

Material:               Aluminum

Load direction:     Compression

Rated output:        0-5V/0-10V/4-20mA

Non-repeatability:   0.1% F.S.

Excitation:              12V/24V DC

Other:                   Customizable



Features:

Beam type load cells are well known for their high accuracy and low price,but unamplified mV/V signal from strain gauges makes it a bit difficult for signal processing in some cases.Here Forsentek introduces a solution to get 0-5V,0-10V or 4-20mA output directly from the load cell through embedding an amplifier board inside the load cell.Compared to traditional external signal amplifier,load cell with built in amplifier has many advantages such as:Easier wiring,compact size and lower cost.

The rectangular shape and low profile design of the amplifier board makes it especially suitable for single point load cells and parallel beam load cells,please email to sales@forsentek.com to find out whether it’s applicable to your case.

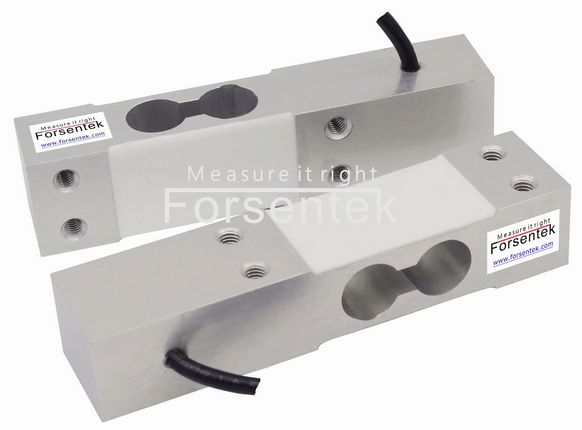

load cell with built in amplifier

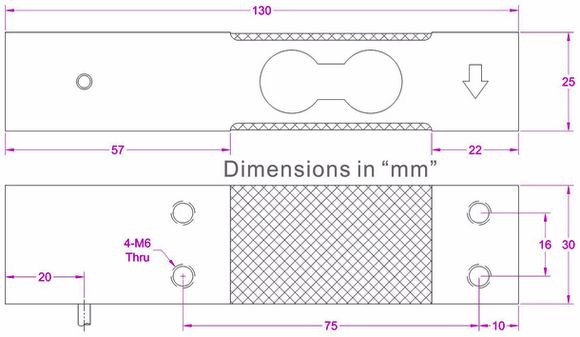

Dimensions:
