Micro rotary torque sensor 0-5Nm shaft style

Model:                        FYA

Style:                         Dyamic torque meter

Structure:                    Shaft-to-shaft

Torsion direction:         Clockwise&CCW

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Type:                         Miniature torque sensor

Torque range:             1/2/3/5Nm

Features:

The FYA miniature rotating torque sensor is a slip-ring type rotary transducer capable of measuring both reaction and rotating torque in clockwise and counterclockwise directions. With an ultra-compact design featuring a 37mm outer diameter and 38mm housing length, it offers a space-saving inline structure that simplifies installation and integration. Its small footprint makes it ideal for high-density, precision torsion measurement systems where space is limited. The FYA inline torque meter is well-suited for applications such as robotics, small motor testing, and micro-mechanical assemblies. In addition to standard models, custom design services are available to accommodate specific requirements, ensuring flexibility and optimal performance across various dynamic torque sensing applications.

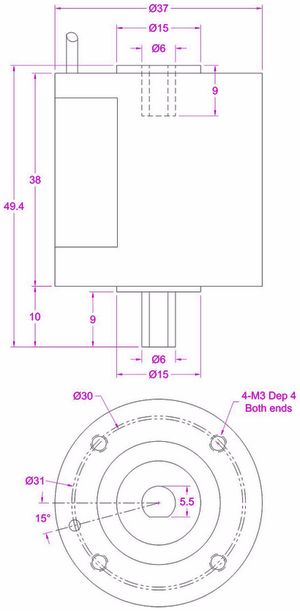

Dimensions:
