Product > Tension compression load cell

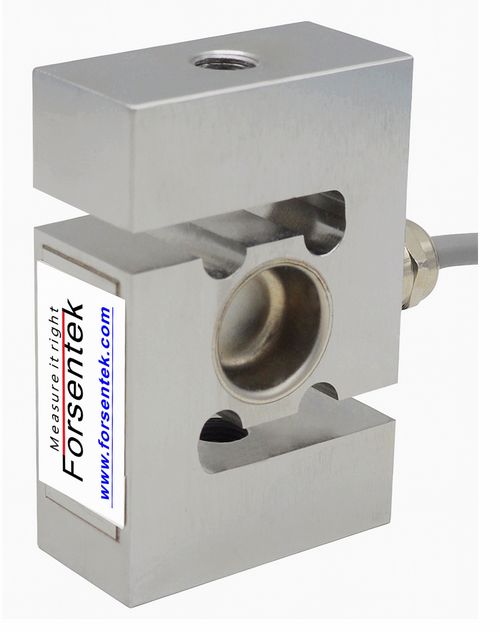

S type load cell waterproof S beam load cell

 Model:              FSRS

Capacity:              50kg~5000kg

Material:               Stainless steel

Load direction:     Tension&Compression

Rated output:        2.0mV/V

Non-repeatability:   0.02% F.S.

Excitation:              3~15V

Other:                   Customizable



Features:

s type load cell

--Stainless steel construction

--IP68 hermetically sealed by laser welding

--Tension and compression force measurement

--Widely used for hanging scales,cement scales,batching weighing,tank weighing,hopper scales,etc..

s-type load cell

Dimensions:
Searching keywords:
S type load cell,s beam load cell,s-type load cell,s type force sensor,tension load cell,compression load cell,tension compression load cell
