Flange mounted load cell cylindrical force sensor

Model:                        FFG

Mounting:                   Flange to flange

Type:                          Column load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Capacity:                   0~2kN

Features:

The FFG miniature flange load cell is a compact, high-precision force sensor designed using strain gauge technology, ensuring a maximum non-linearity of just 0.1% of the rated output. Available in seven measuring ranges—0-20N, 0-50N, 0-100N, 0-200N, 0-500N, 0-1kN, and 0-2kN—it supports both tension and compression force measurement. Constructed from stainless steel with a flange-to-flange configuration, the FFG force measurement sensor combines durability, bidirectional measurement capability, and a space-saving form factor. Its high accuracy and cost-effective performance make it ideal for a variety of industrial and testing applications, including automated control systems, force monitoring in assembly processes, wire tension regulation, spring compression testing, ultrasonic welding clamp force control, and hand press force verification. Whether used in production or laboratory settings, the micro column design of the FFG provides reliable and consistent results. Forsentek also offers customization options to accommodate unique installation or measurement needs, ensuring the FFG force feedback sensor can be tailored for diverse force measurement challenges.

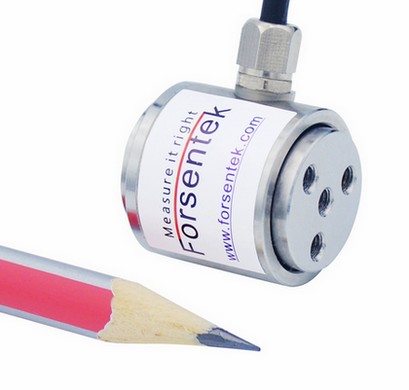

press fit load cell

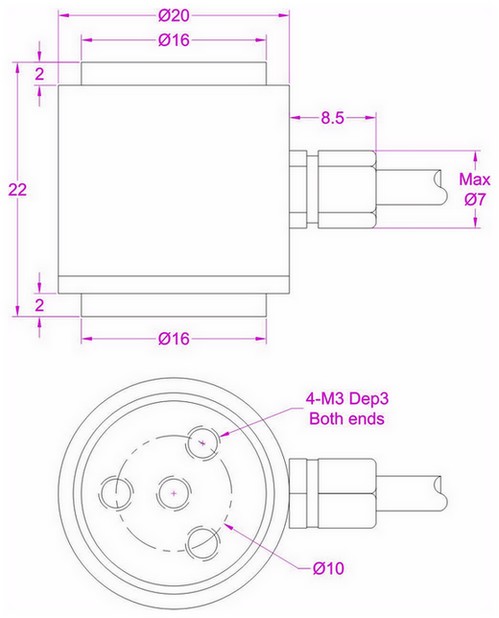

Dimensions:
