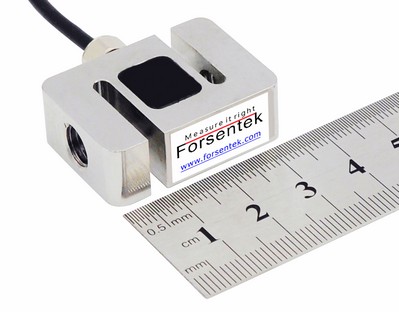

0-2kN Miniature force sensor with M8 threaded hole

Model:                        FSKA

Capacity:                    0~2kN

Type:                          Small S type load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Excitation:                  3~15V

Other:                        Push/Pull force sensor

Features:

The FSKA miniature tension and compression load cell is a high-precision force sensor constructed from stainless steel and based on reliable metal foil strain gauge technology. Designed for applications with limited mounting space, the FSKA features a compact S-beam structure measuring just 35×25×12mm, making it ideal for tight setups without compromising performance. This push-pull force sensor is available in six rated capacities: 50N, 100N, 200N, 500N, 1kN, and 2kN, offering flexibility for a wide range of low to mid-force measurement needs. With a maximum non-linearity of just 0.1% of full scale, it ensures highly accurate and repeatable readings. The load cell includes M8 threaded holes on both ends, allowing for the easy attachment of hooks, eye bolts, or load buttons, enabling fast adaptation to different testing environments. Its robust yet lightweight design makes it suitable for both static and dynamic force monitoring. Common applications include sim racing pedal feedback systems, connector insertion/extraction tests, friction meters, and cylinder push-pull force measurement. For specialized needs, the FSKA can be customized to match unique requirements, making it a versatile solution for OEM and research applications alike.

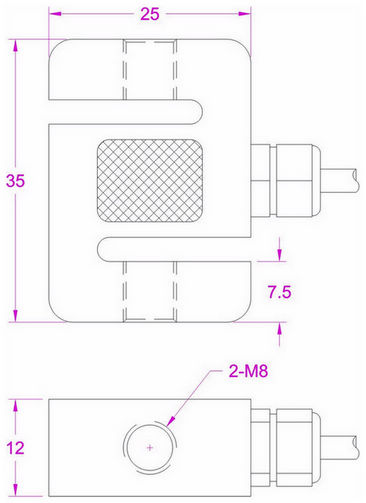

Dimensions:
