3-axis force sensor 25kN 50kN multi-aixs load cell

Model:                 MAE

Capacity:              10/25/50/100kN

Material:               Stainless steel

Load direction:      X/Y/Z

Rated output:        1.0mV/V

Non-repeatability:   0.2% F.S.

Excitation:              3~15V

Other:                   Customizable

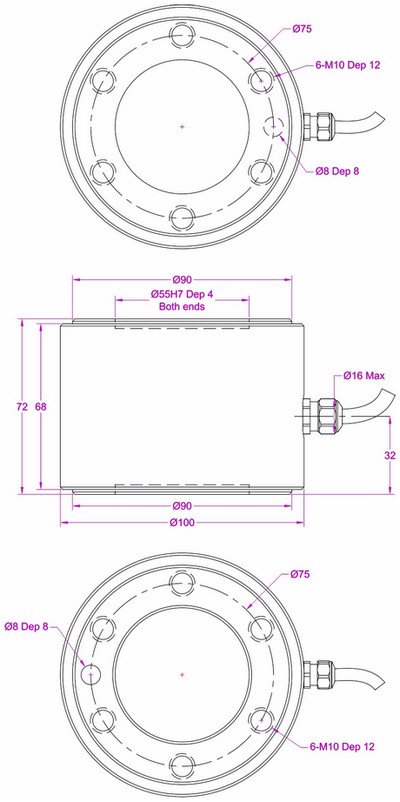

Multi-axis force sensor MAE is made of stainless steel based on strain gauge technology intended for Fx/Fy/Fz 3 axis force measurement, transducer delivers unamplified mV/V output for each axis which is proportional to the applied force,independent wheatstone bridge for each axis requires no mathematical manipulation.3 axis load cell MAE offers 10kN / 25kN / 50kN / 100kN measuring ranges to choose from, flange to flange design, easy to install, you may find MAE applicable for force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator force measurement,etc.
