Multi axis load cell 0-500N 3-axis force sensor
Model: MAC
Capacity: 50/100/200/500N
Type: Multi-axis transducer

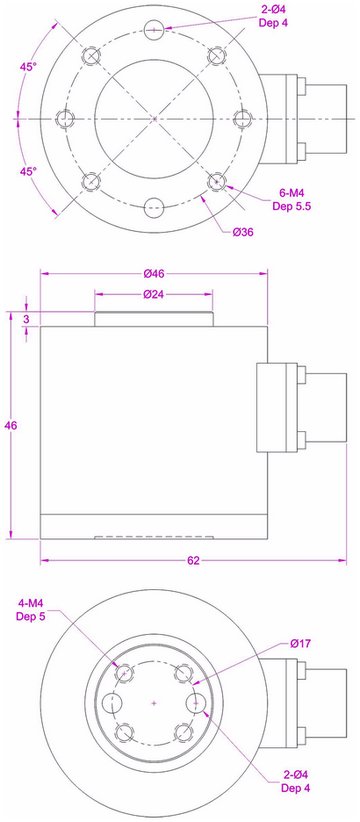

Mounting: Flange-to-flange
Rated output: 1.0mV/V
Non-repeatability: 0.2% of R.O.
Excitation: 3~12V
Usage: 3D force measurement
Features:
The MAC Multi-Axis Load Cell is engineered to measure forces simultaneously across three mutually perpendicular axes (Fx, Fy, Fz) using independent Wheatstone full-bridge circuits for each axis, generating mV/V analog outputs proportional to the applied forces. Available in four calibrated ranges (50N, 100N, 200N, 500N), the sensor supports bidirectional force detection in both tension and compression modes, enabling precise three-dimensional load analysis in dynamic environments. Its stainless steel construction ensures durability in harsh industrial conditions, while the compact, flange-to-flange mounting design facilitates secure installation and efficient force transfer between components. Designed for versatility, the MAC 3-axis load cell excels in applications such as robotic force feedback control, industrial test bench validation, grinding process force regulation, actuator performance testing, and automated manufacturing quality assurance. By providing real-time triaxial force data in a single device, it eliminates the need for multiple single-axis sensors, streamlining system complexity and reducing costs. This combination of precision, durability, and adaptability positions the MAC triaxial load cell as a critical solution for advanced engineering challenges requiring accurate multi-directional force monitoring in fields ranging from robotics and automotive R&D to industrial automation and precision machining.
