Micro button load cell Smallest force sensor

Model:                        FC8E

Capacity:                    50/100/200/500N

Type:                          Smallest load cell

Structure:                    Load button

Rated output:              1.0mV/V

Non-repeatability:      0.5% of R.O.

Excitation:                  3~8V

Other:                        Micro compression sensor

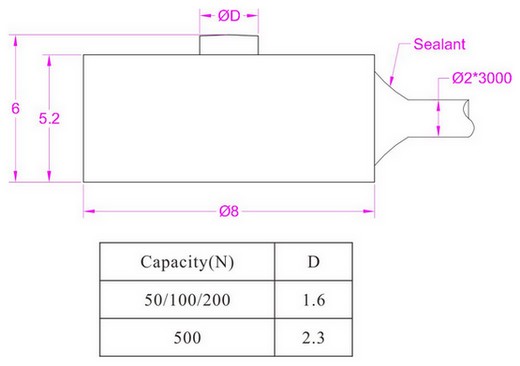

Micro button load cell force sensor FC8E is made of stainless steel based on metal foil strain gauge technology intended for compression force measurement. Subminiature compression force transducer FC8E offers 0-50N / 0-100N / 0-200N / 0-500N four rated measuring ranges to choose from. Smallest compression load cell FC8E is featured with only 8mm outer diameter and 6mm total height which makes it extremely suitable for force measurement applications with limited mounting space.
