Product > Beam load cell

Small load cell 2kg miniature weight sensor

Model:                  FMZT

Capacity:              2kg

Material:               Aluminum alloy

Load direction:      Compression

Rated output:        0.7mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~6V

Other:                   Customizable

Features:

Small load cell sensor FMZT offers 2kg rated capacity,this load sensor is made of aluminum alloy based on strain gauge technology which delivers maximum 0.1% non-linearity.The weight sensor FMZT uses 1000 ohms high resistance strain gauges,which is more energy-efficient compared to commonly used 350 ohms strain gages.About 3.3 grams self weight thanks to the compact size,miniature load cell FMZT is suitable for high accuracy weight measurement applications with restricted space and tight budget.Tailor made service is available according to specific requirements.

load cell for coffee machine

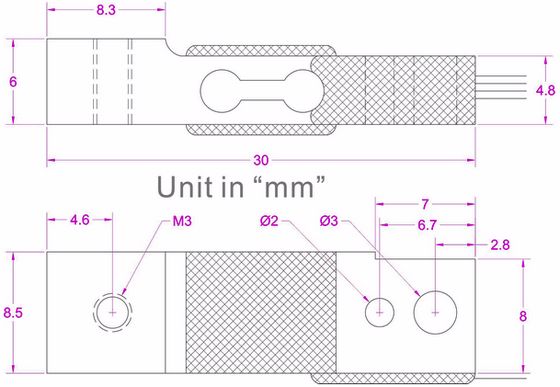

Dimensions:
Searching keywords:
Miniature weight sensor,miniature load cell 2kg,load cell 2kg,coffee machine weight measurement
