3-axis load cell 0-500kg Multi axis load cell

Model:                        XYZ

Capacity:                    50kg~500kg

Type:                          3-axis force transducer

Load direction:           Fx/Fy/Fz

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~12V

Usage:                       Triaxial force measurement



3-axis load cell XYZ utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation.Multi-axis force sensor XYZ is designed to measure forces simultaneously in 3 mutually perpendicular axes Fx/Fy/Fz.Model XYZ offers 50kg / 100kg / 200kg / 300kg / 500kg selectable measuring ranges for all three axes measuring force in both tension and compression direction,compact design with total 30mm height makes it suitable for applications with limited mounting space.Typical applications for this type of transducer are for example force exertion control in robotics,automotive crash testing,industrial test benches,grinding force control,actuator operating force measurement,etc..

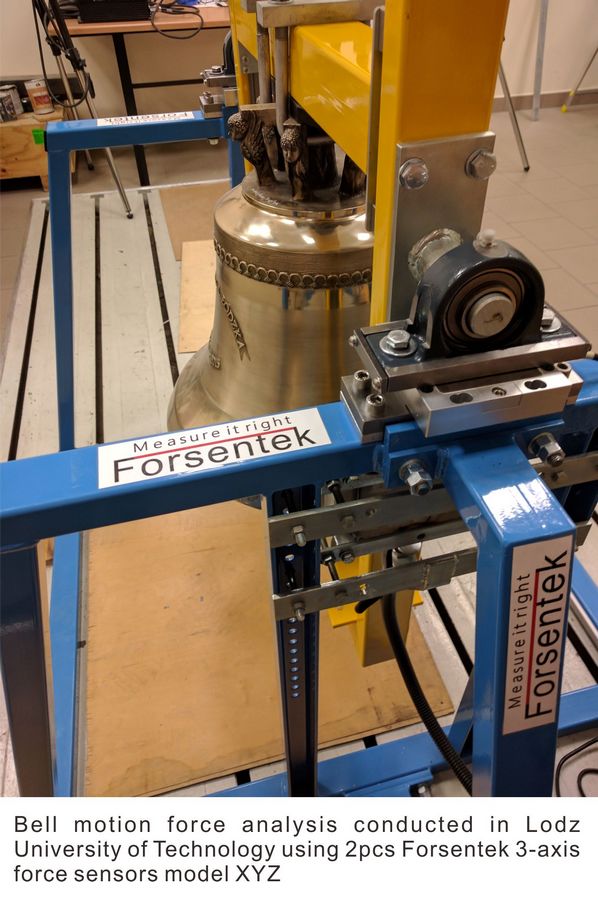

3 axis load cell application
