Product > Torque transducer

Static torque transducer Reaction torque meter

  Model:              FTK/FTJ

Capacity:              50NM~1000NM

Material:               Al/Alloy steel

Torque direction:     CW&CCW

Rated output:        1.5mV/V

Non-repeatability:   0.1% F.S.

Excitation:              3~15V

Other:                   Customizable

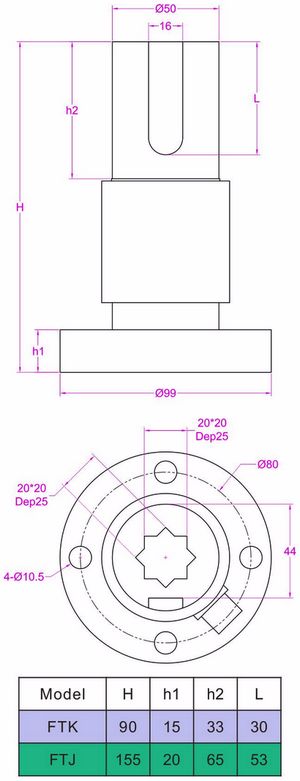

Static torque transducer FTJ/FTK is made from either alloy steel or aluminum depending on the torque range, both models offer 50N-m / 100N-m / 200N-m / 300N-m / 500N-m / 1000N-m six rated capacities intended for reaction torque measurement in both clockwise and anti-clockwise direction. Reaction torque meter FTJ/FTK is normally used with the flange side fixed as the stationary part while the other side loaded by torque wrenches or other torque applying devices. Custom made service is available for other specifications and configurations.
