Rope tension transducer|Wire tension sensor

Model:                       FZTE

Type:                          Rope tension sensor

Usage:                       Tension measurement

Load direction:           Tensile force

Rated output:              0-5V/4-20mA

Non-repeatability:      0.2% F.S.

Excitation:                  24V DC

Capacity:                    0~2kN

Features：

--0-5V,0-10V or 4-20mA output through built-in amplifier

--Tension force measurement for yarn,wire,cables,etc.

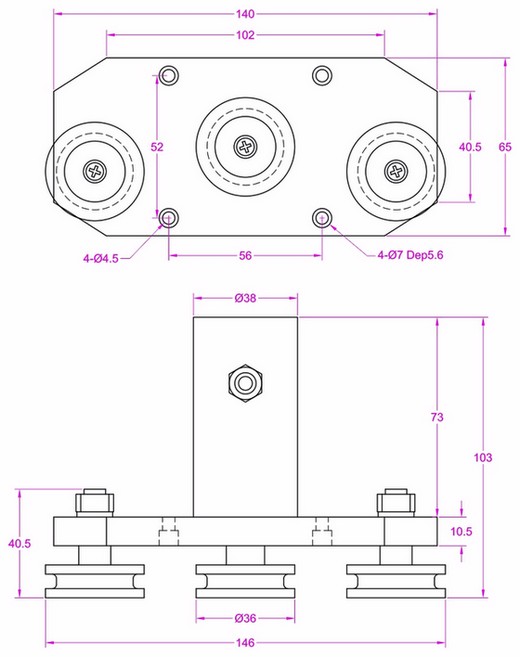

Dimensions：
Searching keywords：
Tension transducer,tension sensor,wire tension sensor,cable tension sensor,yarn tension sensor
