Product > Tension compression load cell

S type load cell|S beam load cell sensor

Model:                 FSSA

Capacity:              2KN~100KN

Material:               Alloy steel

Load direction:     Compression/tension

Rated output:        2.0mV/V

Non-repeatability:   0.03% F.S.

Excitation:              5~15V

Other:                   Customizable



Features:

--Alloy steel construction,S beam structure

--Strain gauge load cell,analog output

--Wide range from 2KN to 100KN

--Tension and compression force measurement

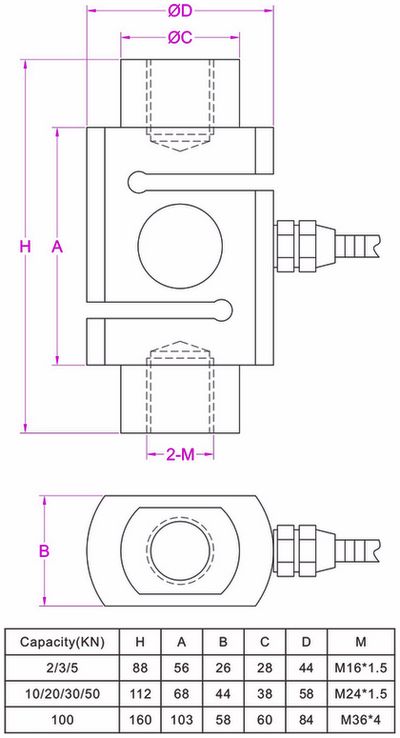

Dimensions:
Searching keywords:
S type load cell,S beam load cell,S-type load cell 30KN,S-beam load cell 5KN
