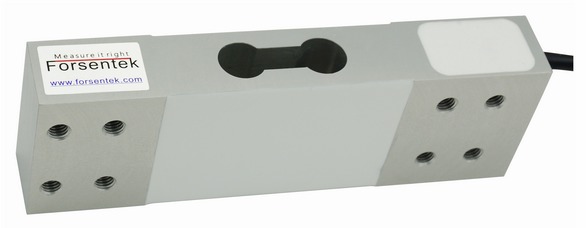

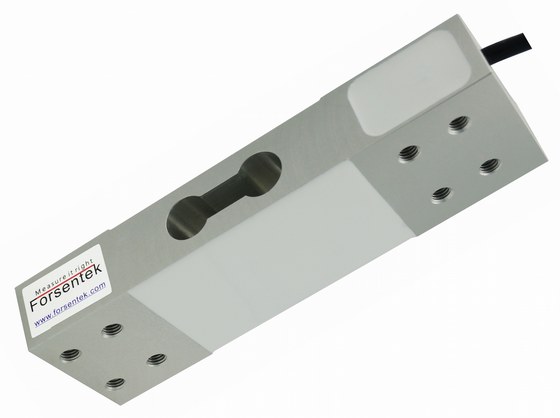

Platform load cell 0-500kg Off center load cell

Model:                        FNP

Capacity:                    0-500kg

Material:                     Aluminum alloy

Type:                          Single point load cell

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Off center weight sensor

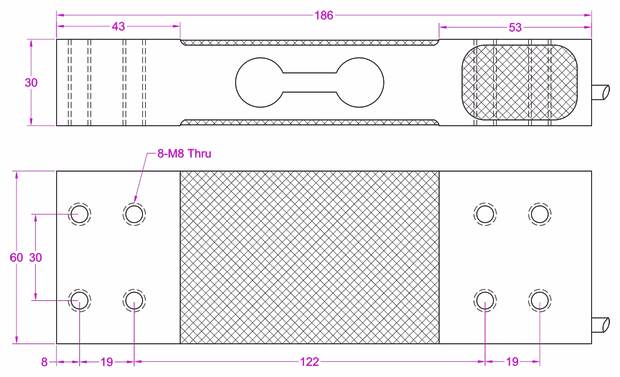

The Platform Load Cell FNP is ideal for single-cell large-platform scales. This load cell maintains precision in any position the object is loaded and this solves the problems that usually occur in weighing systems if the object does not locate exactly at the center of the platform. Off center load cell FNP offers 500kg / 300kg / 200kg / 150kg / 100kg / 60kg six rated capacities to choose from, high accuracy with maximum 0.015% non-linearity of the full scale. 4xM8 threaded holes located on each end, one end to fix the sensor, the other end to mount the loading platform. Weighing load cell FNP is corner trimmed using 600x600mm platform, which makes it suitable for off-center weight measurement. Stable performance over a wide of temperature is guaranteed thanks to its temperature compensation process.Weight sensor FNP is constructed from aluminium and environmentally sealed with potting compound to ensure durability. Typical applications of model FNP are for example platform scales, automated weighing stations, food packaging machines, warehouse weighing system and so on.
