Reaction torque sensor 0-100Nm Static torque cell

Model:                        FTA

Type:                          Stationary type

Mounting:                   Flange-to-flange

Structure:                    Through hole

Rated output:              1.5 mV/V

Non-repeatability:      0.1% of R.O.

Direction:                   CW & CCW

Torque range:              0~100Nm



Features:

The FTA torque load cell is a compact and reliable transducer designed for precise reaction torque and twisting force measurement in both clockwise and counterclockwise directions. Constructed from aluminum or alloy steel, it features a robust thru-hole design with flange-to-flange mounting for easy and secure installation. The FTA is available in a wide measuring range from 0.2Nm to 100Nm, with a maximum non-linearity of just 0.2%, ensuring accurate and consistent performance. Each sensor is supplied with a 3-meter disconnectable cable and mating connector for convenient setup, along with an in-house calibration certificate to guarantee traceable accuracy. This torque sensor is ideal for applications requiring compact integration, such as component testing, assembly force monitoring, and laboratory analysis. In addition to the standard specifications, tailor-made versions are available to meet specific user requirements, making the FTA a versatile and customizable solution for torque measurement across various industries.

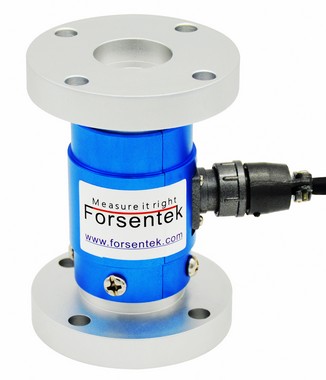

flange type torque cell

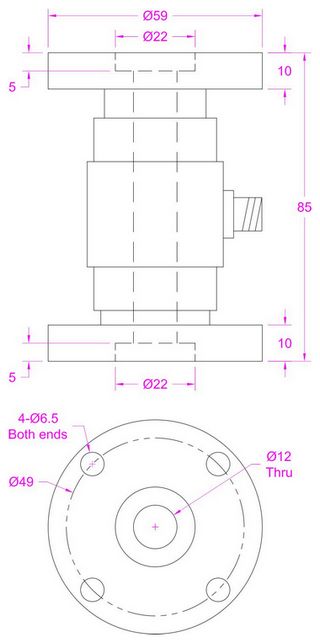

Dimensions:
