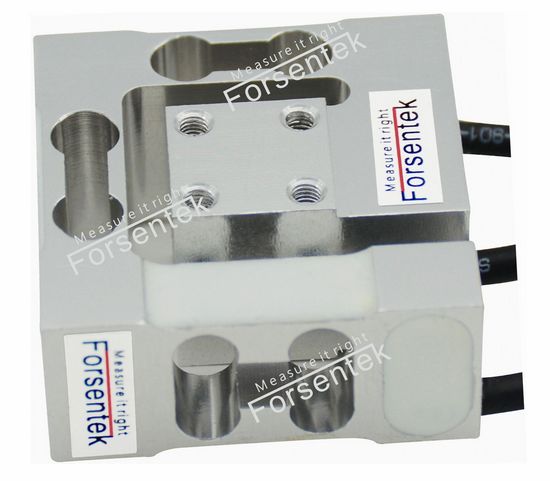

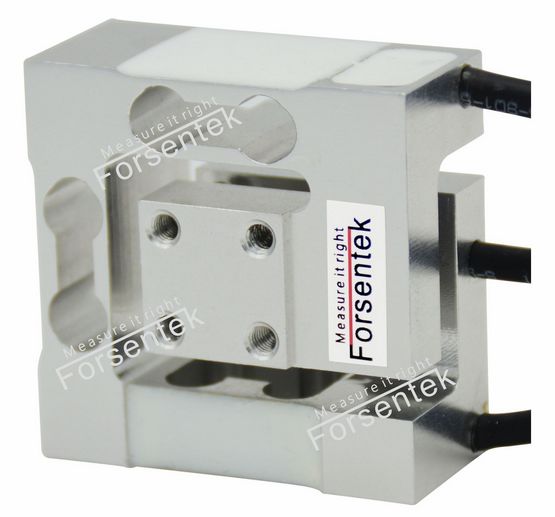

3 axis load cell 0-100N Multi-axis force sensor

Model:                        FNZ

Capacity:                    10/20/50/100N

Type:                          Triaxial load cell

Load direction:           Fx/Fy/Fz

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~12V

Usage:                       3-axis force measurement

Features:

The FNZ multi-axis load cell is available in four rated measuring ranges—0–10N, 0–20N, 0–50N, and 0–100N (equivalent to 0–2.2 lb, 0–4.5 lb, 0–11.2 lb, and 0–22.5 lb)—for all three axes, each capable of measuring both tension and compression forces. It features an independent Wheatstone full bridge on each axis, providing a direct mV/V output proportional to the applied force without requiring any mathematical compensation. This design ensures precise and reliable force measurement across all axes. Typical applications include friction force detection, robotic force control, force monitoring in handling systems, and use in industrial test benches. The FNZ 3-axis force sensor is especially well-suited for scenarios demanding compact, multi-directional force measurement with high sensitivity and repeatability.

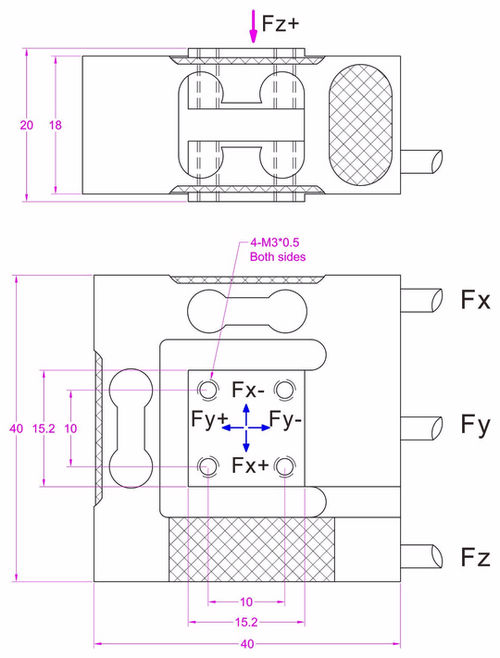

Dimensions:
