20kg 40kg 60kg 100kg 200kg Loadcell sensor

Model:                        FNH

Capacity:                    20~200kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±10%mV/V

Non-repeatability:      0.015% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

--Aluminum contruction

--Strain gauge load cell,high accuracy

--Beam structure,small size,easy to install

--Corner trimmed for 250*350mm platform

--Widely used for platform scales,counting scales,weighing devices

--Competitive price

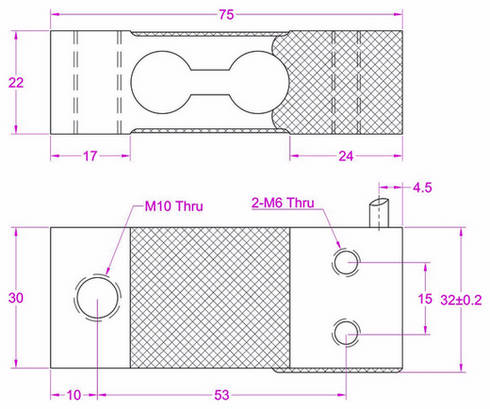

Dimensions:
