Jr s-beam load cell M3/M4 miniature force sensor

Model:                        FSSP

Capacity:                    0~50kg (Selectable)

Type:                          S-beam jr load cell

Load direction:           Tension/compression

Rated output:              2.0mV/V

Non-repeatability:      0.05% of R.O.

Connection:                M4/M3 tapped hole

Other:                        Miniature force sensor

Features:

The FSSP miniature Jr. S-beam load cell is a compact yet highly precise force feedback sensor engineered for applications that demand accuracy, reliability, and easy integration in tight spaces. Designed to cover a wide range of low-capacity needs, this advanced transducer offers rated capacities from 1 kg up to 50 kg, making it a versatile solution for industries such as robotics, automation, assembly machinery, and quality control testing systems.

Constructed from rugged 17-4 stainless steel, the FSSP micro force cell is built to withstand challenging environments while maintaining excellent measurement stability. Utilizing high-grade metal foil strain gauge technology, it delivers a consistent 2.0 mV/V output and ensures a maximum non-linearity of only 0.1% of full scale. Each unit comes equipped with a durable 4-meter integrated cable and undergoes strict testing procedures to guarantee dependable performance from the moment it is installed.

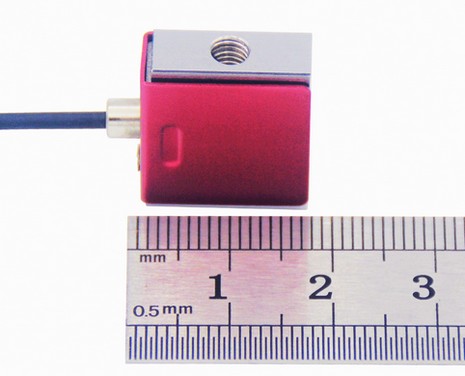

miniature s-beam jr. load cell

For seamless system integration, the sensor features M3 or M4 threaded holes on both ends, simplifying attachment to custom fixtures or adapters. This design makes it particularly well-suited for tension and compression force measurement, whether in push-pull testing, end-of-line inspection, or delicate load monitoring in precision instruments.

With its small footprint, robust construction, and exceptional accuracy, the FSSP miniature S-beam Jr. load cell delivers reliable results in places where conventional sensors cannot fit. Whether you require continuous monitoring or one-off testing, this compact force detection sensor offers the ideal balance of size, strength, and precision for critical force measuring applications.

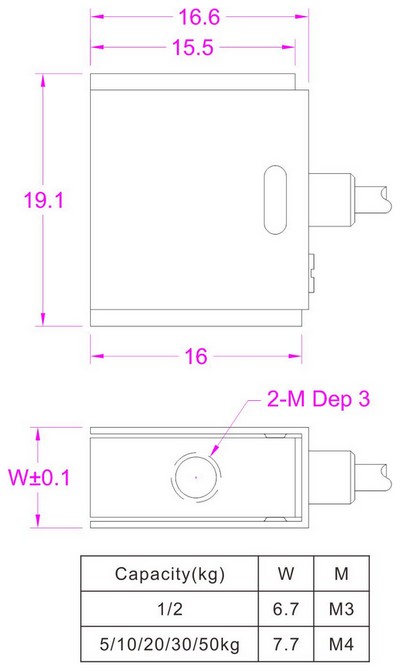

Dimensions:
