Off-center weight sensor 60kg 100kg 200kg 350kg

Model:                        FNL

Capacity:                    60/100/200/350kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

Weight sensor FNL is a strain gauge based load cell which delivers very high accuracy of maximum 0.015% non-linearity of the full scale,weight transducer FNL offers 0-60kg / 0-100kg / 0-200kg / 0-350kg four measuring ranges to choose from.Load sensor FNL is a beam type load cell with 4*M6 threaded holes on each end,one end can be used to fix the load cell,the other end can be used for loading.Load button,loading platform or other attachments can be mounted to the loading end to fit different measuring applications.Off center load cell FNL is corner trimmed for platform sizes up to 400x400mm which makes it suitable for off-center weight measurement.Load cell sensor FNL is able to deliver stable measuring results throughout the declared working temp. range thanks to its temperature compensation process.You may find FNL suitable for applications such as beehive weight measurement,packing machines,platform scales,feeding machines,etc..

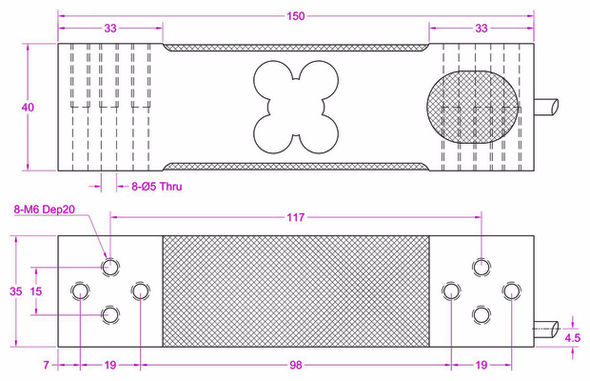

Dimensions:
Searching keywords:
Weight sensor 100kg,off center load cell 200kg,300kg weight measurement
