Tesion and compression load cell 120kg

Model:                        FHBD

Capacity:                    120kg

Material:                     Aluminum alloy

Load direction:           Tension/Compression

Rated output:              2.0mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~10V DC

Other:                         Custom-design service

Features:

Low profile tension compression load cell FHBD is made of aluminum based on strain gauge technology with 2.0mV/V output.Model FHBD is a specially designed model with 120kg measuring range,the M6 threaded hole located in the center of load cell can be loaded in both tension and compression direction while the 2xM4 holes are used to fix the sensor.

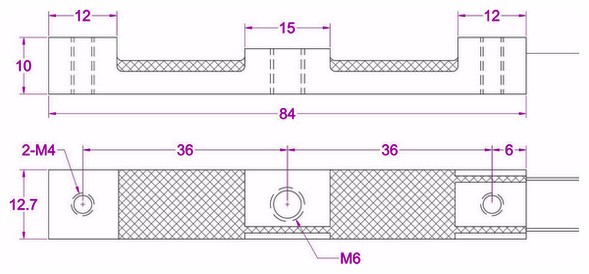

Dimensions:
Searching keywords:
Low profile load cell,tension and compression force sensor
