Force washer load cell 0-5ton Donut load cell

Model:                        FDBA

Capacity:                    0-5ton

Material:                     Stainless steel

Load direction:           Compression

Rated output:              1.5mV/V

Non-repeatability:      0.2% of R.O.

Excitation:                  3~15V

Structure:                     Thru-hole

Features:

Force washer load cell FDBA is made of stainless steel intended for press or inline compression measurement. The most common application of the donut thru-hole load cell FDBA is to be installed between the bolt head and the nut, where it measures fastener clamping force as torque is applied. Hollow force transducer FDBA offers a wide measuring ranges from 20kg to 5ton, the load cell washer can be also modified or customized to meet your requirements.

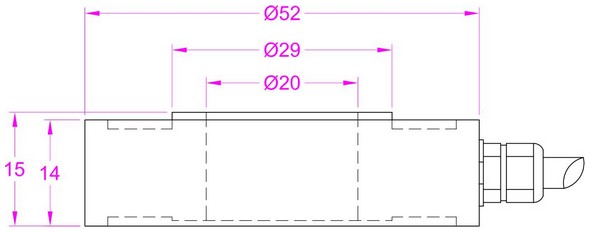

Dimensions:
