Product > Tension compression load cell

Side mount load cell|Parallelogram load cell

Model:                        FS12

Capacity:                    10N~500N

Material:                     Aluminum alloy

Load direction:           Tension/compression

Rated output:              1.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~12V

Other:                         Custom-design service

Features:

The FS12 side mount load cell is a precision-engineered force cell designed for compact integration and reliable performance in demanding measurement applications. Built on advanced strain gauge technology, the FS12 incorporates a full Wheatstone bridge circuit, delivering a stable 1.0mV/V output with exceptional accuracy. With a maximum non-linearity of just 0.05% of full scale, this sensor ensures dependable results even in sensitive testing and monitoring systems.

Available in seven different versions, the FS12 Parallelogram load cell offers rated capacities ranging from 10N up to 500N, making it suitable for both light and moderate force measurement needs. The aluminum construction provides durability while keeping the unit lightweight, ensuring it can be seamlessly integrated into OEM equipment and custom devices.

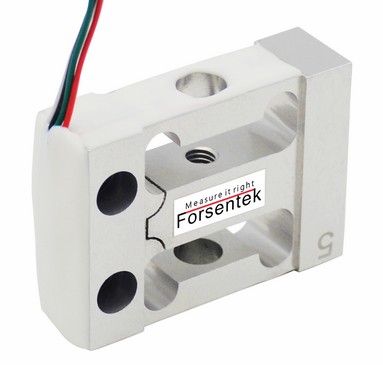

Parallelogram load cell

Specifically designed for tension and compression force measurement, the FS12 delivers accurate readings whether used in pull or push applications. Its side-mounted installation design allows for straightforward and secure attachment, reducing setup time and enhancing usability. This makes it particularly effective in applications such as handheld or benchtop force gauges, test benches, friction analysis equipment, and industrial automation systems where space is limited but precision is critical.

Combining versatility, compact size, and reliable output, the FS12 side mount load cell is a trusted solution for engineers and manufacturers seeking high-performance Parallelogram load cell technology for a wide range of measurement tasks. Its balance of accuracy, lightweight design, and simple integration makes it an ideal choice for both laboratory research and industrial applications requiring precise bidirectional force measurement.

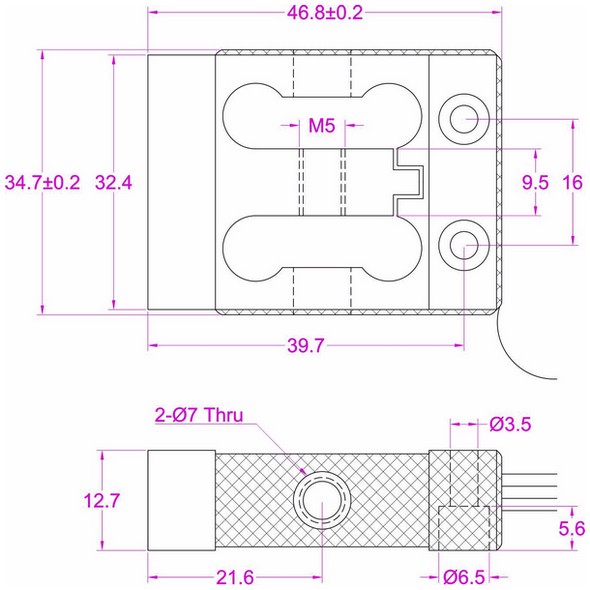

Dimensions:
