Product > Beam load cell

Bending beam load cell|High accuracy load cell

Model:                        FSH

Capacity:                    0~500kg

Material:                     Stainless steel

Type:                          Bellow type load cell

Rated output:              2.0mV/V

Non-repeatability:      0.02% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

hbm load cell

--Stainless steel construction

--Laser welded, IP68 waterproof

--Strain gauge based, analog output, high accuracy

--Widely used for belt scales, hopper scales and other high accurcy weighing applications

zemic load cell

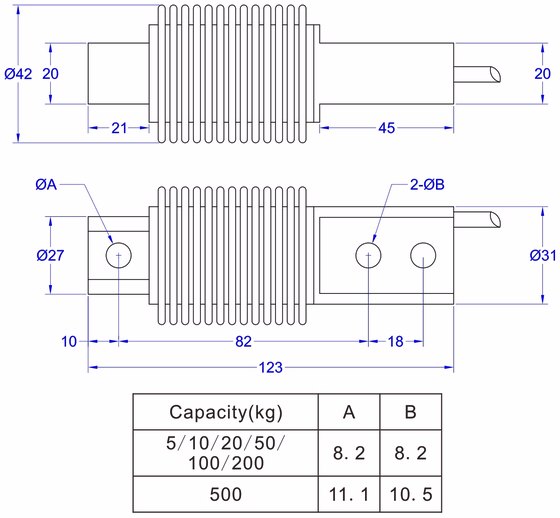

Dimensions:
Searching keywords:
High accuracy load cell,load cell waterproof,load cell IP68,load cell 100kg,load cell 50kg,load cell 5kg,load cell 10kg,weight sensor,weight transducer,load cell sensor
