Micro Torque Transducer Shaft Inline Torque Sensor

Model:                        FT05

Capacity:                    0~5NM

Type:                          Micro torque meter

Load direction:           Clockwise&CCW

Rated output:              1.0mV/V

Non-repeatability:      0.1% of R.O.

Structure:                   Shaft-to-shaft

Usage:                        Measure torque

Features:

The FT05 miniature in-line reaction torque sensor is a compact and precise solution for low-range torque measurement, utilizing metal foil strain gauges bonded to a specially machined stainless steel body. It delivers high accuracy with a maximum non-linearity of 0.2% of full scale and is designed to measure torque in both clockwise and counterclockwise directions. Available in eight rated capacities—0.1Nm, 0.2Nm, 0.3Nm, 0.5Nm, 1Nm, 2Nm, 3Nm, and 5Nm—this micro torque sensor is ideal for precision applications where space is limited. Its shaft-to-shaft design allows for easy integration with motors or test equipment via standard couplings, and the shaft dimensions can be customized to meet specific installation needs. Each FT05 sensor comes equipped with a 3-meter shielded cable, a mating connector, and a calibration certificate to ensure performance and traceability. The compact form factor, high sensitivity, and flexibility make the FT05 shaft-to-shaf torque load cell suitable for applications such as valve torque verification, actuator torque test, knob torque test, and other low-capacity torque measurement tasks in both laboratory and production environments.

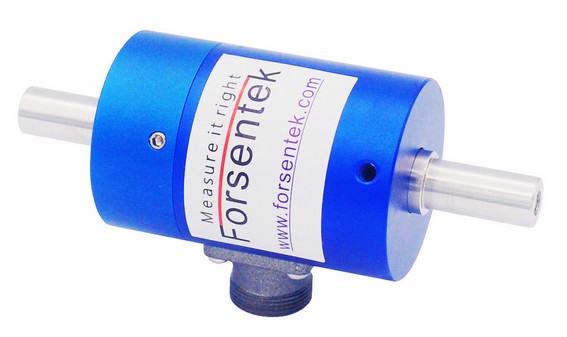

micro torque load cell

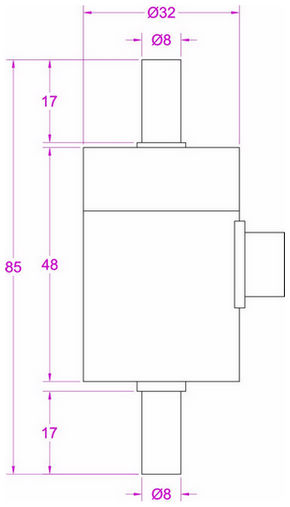

Dimensions:
