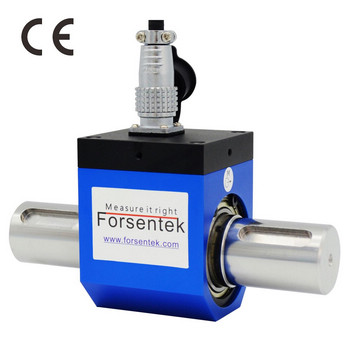

Shaft rotary torque sensor 10NM-500NM

Model:                        FY01

Capacity:                    10NM~500NM

Material:                     Stainless steel

Load direction:           Clockwise&CCW

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

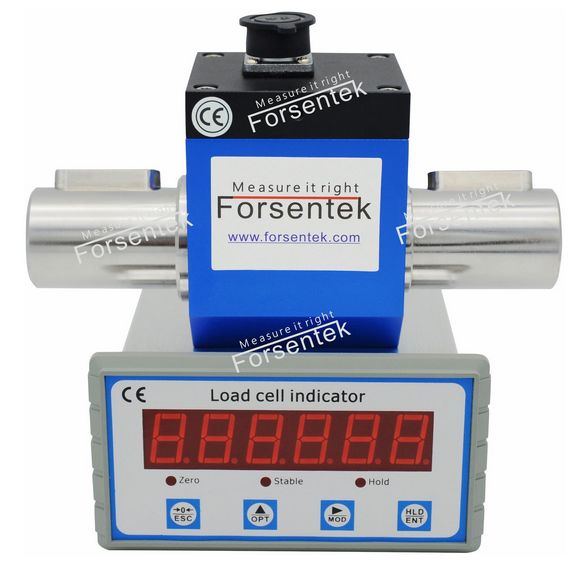

Rotary torque sensor FY01 is a slip-ring type torque transducer intended for rotating torque measurement,Slip rings are used to conduct the millivolt signal from the wheatstone bridge bonded on the sensing shaft which will rotate together with motor shaft in both clockwise and anticlockwise direction to get the torque measured. Rotary torque meter FY01 offers 10NM / 20NM / 30NM / 50NM / 100NM / 200NM / 300NM / 500NM eight measuring ranges with maximum 0.2% non-linearity of the full scale to choose from. Keyed shafts located on both ends of the sensor can be connected to motor and load through couplings.Rotating speed of model FY01 can go up to 4000RPM,it is also suitable for non-rotating and low-speed torque measurement applications.Signal conditioner and display unit is also available to get the readout or 0-5V/0-10V/4-20mA output.Typical applications for this type of torque transducer are for example servo motor torque measurement, test bench applications, valve torque test, torque measurement for stirring devices, screw driver calibration, twist measurement, actuator test,etc..

rotating torque sensor

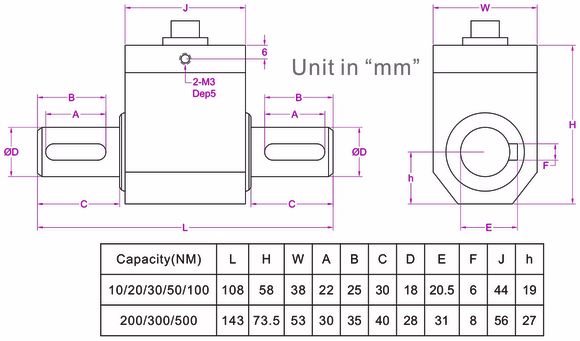

Dimensions:
