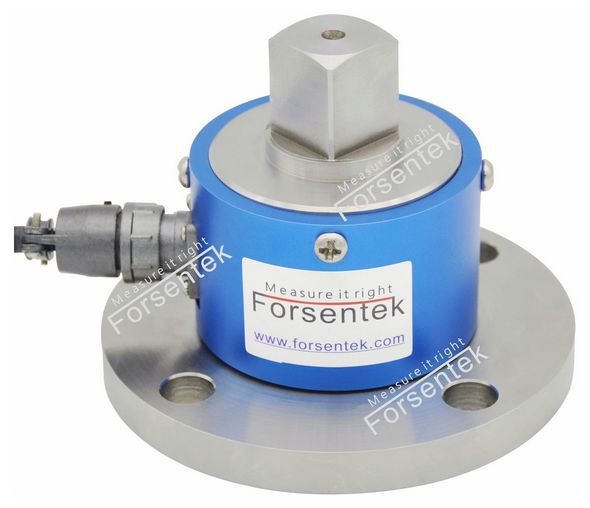

Square torque sensor for torque wrench calibration

Model:                        FT04

Type:                          Square torque transducer

Usage:                        Wrench torque check

Load direction:           Clockwise&CCW

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Torque range:             0~500Nm

Features:

The FT04 flange to square torque sensor is a non-rotating type transducer designed to convert torsional mechanical input into a precise electrical signal using strain gauge technology. Constructed from high-stiffness stainless steel, model FT04 supports torque measurements in both clockwise and counterclockwise directions, with standard capacities ranging from 20Nm to 500Nm. Its unique flange-to-square design makes it especially well-suited for auditing and calibrating mechanical torque wrenches, where the flange can be securely mounted to a bench and the 3/4-inch square drive accommodates standard sockets. The robust construction and stable output ensure reliable performance in industrial and laboratory environments. Furthermore, both the measuring range and flange/square dimensions can be customized to meet specific application needs, making the FT04 torque meter a flexible and practical solution for torque verification and calibration tasks.

torque measurement device

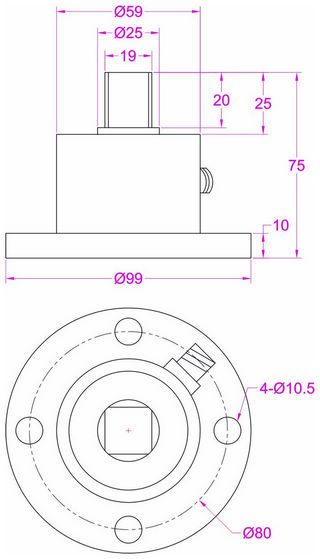

Dimensions:
