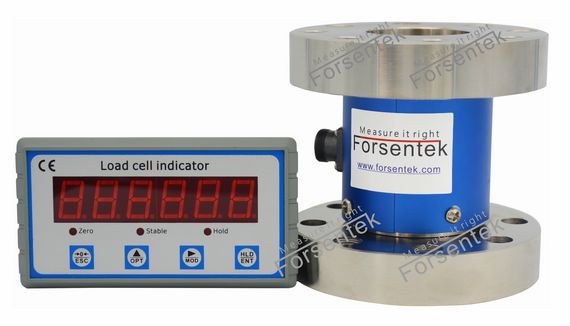

Flange torque sensor 0-100kNM torque measurement

Model:                        FT03

Capacity:                    200NM~100kNM

Material:                     Alloy steel

Load direction:           Clockwise&CCW

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                         Custom-design service

Features:

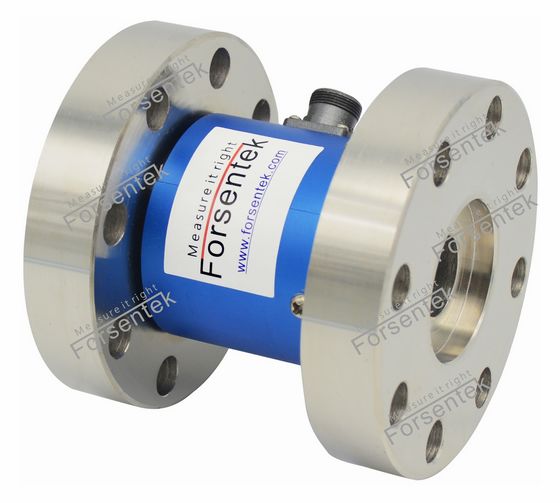

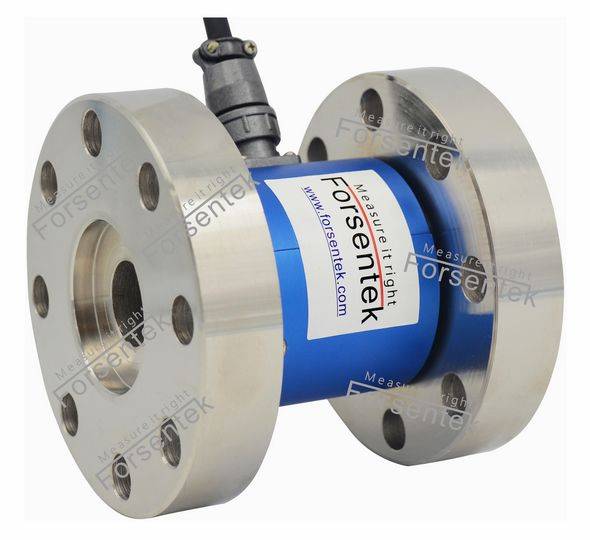

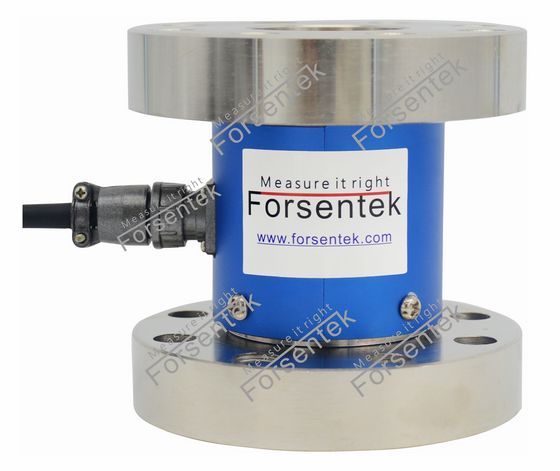

Flange to flange torque sensor FT03 is a reaction type torque transducer for measuring torque in both clockwise and counterclockwise direction.Model FT03 utilizes metal foil strain gauges which are bonded on a special machined portion of the elastic body to deliver a maximum 0.25% non-linearity over a wide measuring range from 200Nm up to 100kNm.Torque cell FT03 is designed with end flanges for bolting between shafts,axes or mounting plates where a direct drive is required.Typical applications for this type of torsion transducer are for example motor torque measurement,test bench applications,screw driver calibration,fatigue testing,twist measurement,motor dynamometers,actuator test,etc..Tailor-made service is available to meet requirements of different applications.

Frequently Asked Questions

Q: What is the output signal of this torque transducer ?

A: Depending on the excitation,normally between -25...+25mV proportional to the measured torque,positive signal in one load direction(Clockwise or CCW),negative signal in the other.

Q: Can I have 0-5V or 0-10V output ?

A: Yes,torque sensor can work with external signal conditioner to deliver output of ±5V,±10V,0-5-10V,4-20mA....

Q: How to get the readout of measured torque ?

A: Torque sensor + Display unit can display the torque value in real time,the display unit can also support RS485/RS232 interface and 0-5V/0-10V/4-20mA analog output.

Q: Can it be modified or customized ?

A: Yes,custom design service is available.

torque measurement

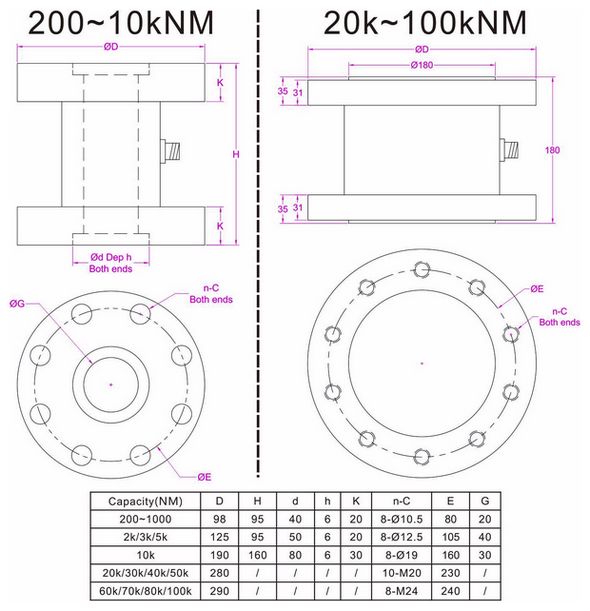

Dimensions:
