Product > Torque transducer

Static torque sensor|Torque measurement sensor

Model:                        FT02

Capacity:                    0.5~100NM on request

Material:                     Aluminum alloy

Load direction:           Clockwise&CCW

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Features:

--Strain gauge based

--Analog output,high accuracy

--Dual measuring directions: Clockwise and Counterclockwise

--Easy to install,for non-rotating torque measurement only

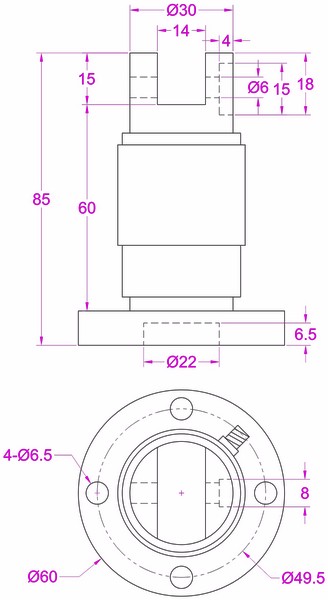

Dimensions:
Searching keywords:
torque sensor 1NM,torque transducer 0.5NM,static torque transducer,reaction torque sensor
