Product > Compression load cell

Pedal force sensor 1kN 2kN Pedal force load cell

Model:                        FCB-B

Capacity:                    1kN/2kN

Material:                     Aluminum alloy

Type:                          Pedal load cell

Rated output:              1.5mV/V

Non-repeatability:      0.1% of R.O.

Excitation:                  3~15V

Other:                        Pedal force transducer

Features:

The FCB-B pedal force load cell is specifically designed for measuring braking force applied to vehicle pedals, making it ideal for automotive testing and development. It features strain gauge technology to ensure high accuracy and reliable performance. The sensor can be easily mounted onto various types of car pedals without extensive modification, providing a practical solution for real-world testing scenarios. Standard output is mV/V, while 0–5V or 4–20mA signal output can be achieved via an external amplifier. Additionally, the FCB-B supports customization to meet specific application needs, offering flexibility for different testing environments or vehicle models.

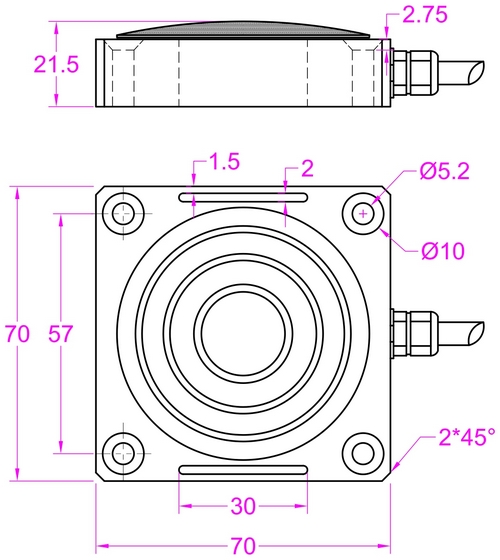

Dimensions:
Searching keywords:
Pedal force sensor,pedal force transducer,pedal force load cell
